USB转SATA探针板FHDD UTS PC-3000系列适配器
目前有以下9种型号:用于西部数据移动硬盘的数据恢复和电子取证!

USB to SATA probe PCB: FDD UTS PC-3000 series adapter , currently has the following 9 models:
used for data recovery and electronic forensics of Western Digital USB HDD!

重要提示:

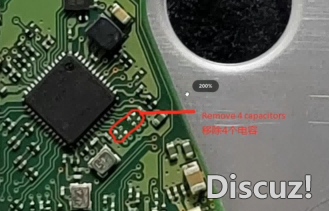

要使PC-3000设备安全稳定地工作,您必须从原始PCB(在USB桥接器和HDD板上的SATA控制器之间)上拆下4个电容器,

否则,您将在保修期内失去ACE的免费硬件保修。当ACE发现问题时,根据ACE的当前指南,我们推荐每个人使用任何一个     PC-3000工具:PC3000UDMA/PC3000EXPRESS/PC3000PORTABLE ,但是,必须移除4个电容在最初的USB WD SMR PCB上。因为PC-3000 Portable 接口的损坏可能被定义为第三方适配器的不正确连接(例如:如果您忘记拆下4个电容器或适配器未正确安装,或手动焊接电源线和数据线与PCB接触不良、焊接故障、短路,静电等导致PC-3000接口可能损坏),如果任何接口损坏,即使在保修期内,您也将失去保修!

特别注意:FHDD UTS 可以非常好的工作和 PC-3000UDMA/EXPRESS/PORTABLE ,厂商和经销商不会负责你在使用 FHDD UTS过程中产生的一切经济损失,一旦你使用本产品将代表您已经接受此条款。

Important note:

For PC-3000 to work safely and stably, you must remove 4 capacitors from the original PCB (Between USB bridge and SATA controller on HDD board), If not, you will lose the free hardware warranty of ACE during the warranty period When ACE found a problem, based on the current guidelines of ACE, We recommended that everyone remove these 4 capacitors using any PC-3000 tool: UDMA, Express or Portable/Portable3. Because the damage of PC-3000Portable Port0/Port1/Port2  is  possible defined as the Incorrect connection of a third-party adapter(Example: If you forget to remove the 4 capacitors or the adapter is not installed correctly, or Manual welding wire also has poor contact with PCB, faulty soldering, short circuit,static electricity, etc cause the PC-3000 or HDD interface maybe damaged,), so you will lose the warranty if any Port is damaged, even within the warranty period!


Special note: FHDD UTS can work well with PC-3000UDMA/EXPRESS/PORTABLE ,The manufacturer and dealer will not be responsible for all the economic losses arising from your use of FHDD UTS. Once you use this product, you will have accepted this clause.

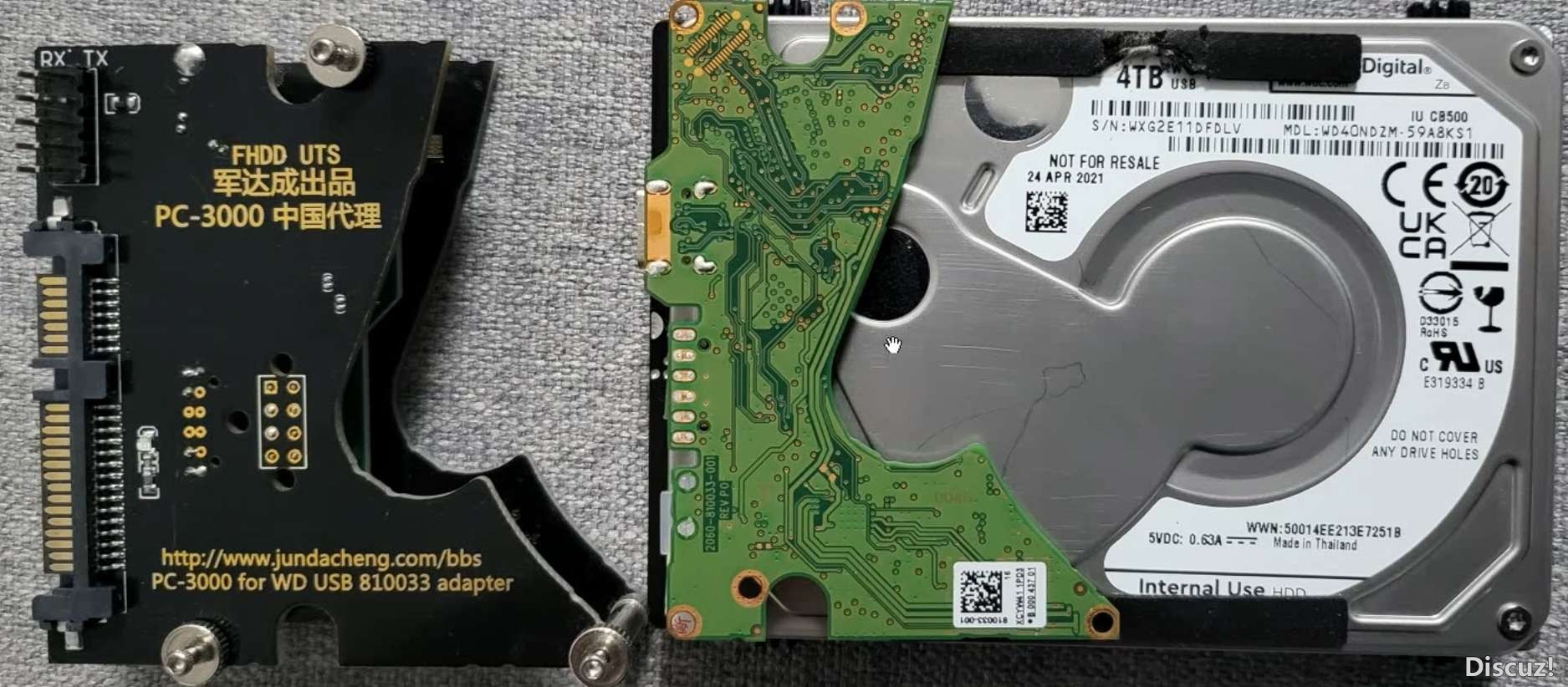

UTS BOARD1.jpg

为了WD USB HDD数据安全,我们推荐使用 FDD UTS PC-3000系列适配器
For WD USB HDD data security, we recommend using FDD UTS PC-3000 series adapter


点这里看视频:USB转SATA探针板FHDD UTS PC-3000系列适配器-使用流程
Click to watch the video: USB to SATA probe PCB: FDD UTS PC-3000 series adapter
-use process


FHDD UTS西数解密探针板最新操作视频: 先看1号完整视频,再看2号完整视频,看完轻松使用
点击这里观看1号视频: FHDD UTS 快速操作和注意事项
点击这里观看2号视频: FHDD UTS操作2-810033解锁读取数据

实际只需2分种,轻松安装完成WD-USB移动硬盘转SATA接口


Latest Operation Video of FHDD UTS Western Digital Decryption Probe Board (Chinese Language): First watch the complete video of # 1, then watch the complete video of # 2, easy to use after watching it
Click here to watch video # 1: FHDD UTS quick operation and precautions
Click here to watch video # 2: FHDD UTS operation 2-810033 unlocking and reading dataActually, it only takes 2 minutes to easily install and complete the WD-USB interface HDD to SATA interface
-------------------------------------------------------------------------------------------------------------

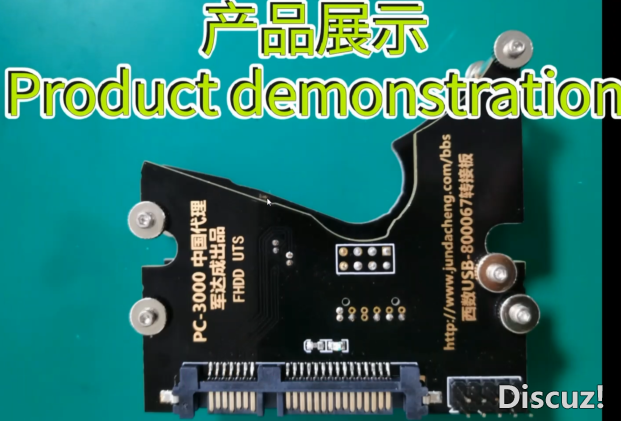

新版本PCB          NEW VERSION PCB
支持读写ROM: The version Support read and write ROM:
你必须有编程器才可以读写ROM,You must have a programmer to read and write ROM

视频1:新版本支持读取ROM USB转SATA探针板FHDD UTS PC-3000系列适配器-使用流程watch the video: NEW version support read ROM USB to SATA probe PCB: FHDD UTS PC-3000 series adapter
-use process


点这里看新视频2:新版本支持读取ROM USB转SATA探针板FHDD UTS PC-3000系列适配器-使用流程
Click to watch the NEW video: NEW version support read Write ROM USB to SATA probe PCB: FHDD UTS PC-3000 series adapter
-use process

在过去,我们通过SATA解锁板读写固件,但是,SATA解锁板虽然可以读写固件,但是读取数据是加密的,所以,我们不再需要SATA解锁板。

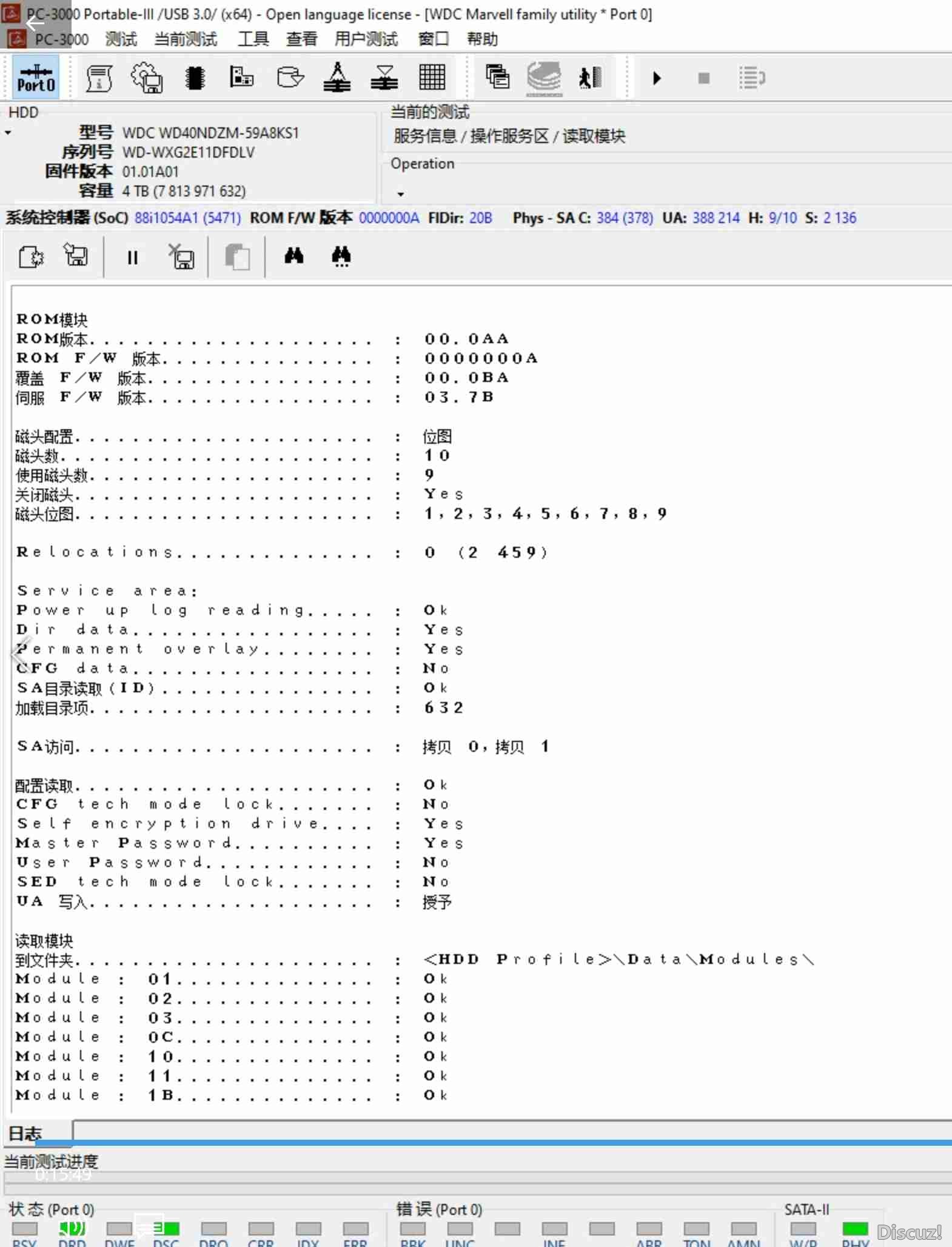

FHDD UTS PC-3000系列适配器支持通过专用线缆接口连接ROM芯片,不需要对ROM芯片进行焊接,数据安全,我们可以通过编程器读取ROM,然后用PC-3000程序 7.1.10 版本可以解锁ROM,再通过编程器回写ROM. 可以解锁原始电路板SED锁定。将原始电路板变成解锁板,正常读写固件并提取数据。
In the past, we read and write firmware with SATA unlock boards, The SATA unlock boards can read and write firmware normal, But, reading data is encrypted, so we no need SATA unlock boards.

FHDD UTS PC-3000 series adapters support the connection of ROM chips with special cable interfaces. There is no need to weld the ROM chips. Data security. We can read  the ROM with the programmer, then use PC-3000 program version 7.1.10 to unlock the ROM, and write back the ROM with the programmer. It can unlock the SED lock of the original circuit board.The original circuit board become an unlock board, read and write the firmware normally, and extract the data normal!!!.

1:PC-3000 for WD USB 800067   [ Support Express/UDMA/portable SATA1,Support ROM]
2:PC-3000 for WD USB 800069   [ Support Express/UDMA/portable,Support ROM]
3:PC-3000 for WD USB 810003   [ Support Express/UDMA/portable SATA1,Support ROM]
4:PC-3000 for WD USB 810012   [ Support Express/UDMA/portable,Support ROM]
5:PC-3000 for WD USB 810033  [ Support Express/UDMA/portable,Support ROM](810067 PORTABLE SATA1)
6:PC-3000 for WD USB 810035    [ Support Express/UDMA/portable SATA1,Support ROM]
7:PC-3000 for WD USB 800041    [ Support Express/UDMA/portable,Support ROM]
8: PC-3000 for WD USB 800086    [Support Express/UDMA/portable ,Support ROM]
9:PC-3000 for WD USB 810082    [Support Express/UDMA/portable ,Support ROM]

注意下面三项:
1:800069=800066=800086
(这3种型号的PCB ROM 接触点相同,你可以使用上面任何一个型号PCB去读取ROM,这3个型号PCB为了读取ROM,它们可以通用互换。)
2:  800067=810003=800065
(这3种型号的PCB ROM 接触点相同,你可以使用上面任何一个型号PCB去读取ROM,这3个型号PCB为了读取ROM,它们可以通用互换。)
3:  810033=810035=810030
(这3种型号的PCB ROM 接触点相同,你可以使用上面任何一个型号PCB去读取ROM,这3个型号PCB为了读取ROM,它们可以通用互换。)

Note the following three:
1: 800069=800066=800086
(These 3 types of PCB ROM contact points are the same, you can use any of the above types of PCB to read ROM, these 3 types of PCB can be interchanged in order to read ROM.)
2: 800067=810003=800065
(These 3 types of PCB ROM contact points are the same, you can use any of the above types of PCB to read ROM, these 3 types of PCB can be interchanged in order to read ROM.)
3: 810033=810035=810030
(These 3 types of PCB ROM contact points are the same, you can use any of the above types of PCB to read ROM, these 3 types of PCB can be interchanged in order to read ROM.) 800086  2t.jpg



部分USB对应/TYPE-C /SATA 参照表:


1.   65系列 800067--USB PCB 3.0  /  810003- TYPC PCB  /SATA PCB    800065

2.   66系列 800069-USB PCB  3.0  /   800086-TYPC-PCB  /SATA PCB    800066

3.   22 系列 800041-USB PCB 3.0  /   810012-TYPC PCB  /SATA PCB     800022(3T有些板不支持4T以上盘)

4.   30 系列 810035-USB PCB 3.0  /  810033-TYPC  PCB  /SATA PCB     810030

一些新的流行的西数硬盘是加密的!!!你必须使用故障硬盘的原始 PCB 来读取数据。 如果更改PCB,数据将被加密。
使用 PCB-FHDD UTS PC-3000适配器只需移除 4 个电容器。
无需焊接4条数据线,增加数据安全性
用户可以通过SATA接口直接对故障硬盘进行映像或提取数据

Some new and popular Western Digital USB HDDs are encrypted,,,,

You must use the original PCB of patient HDD to read the data. If you change the PCB, the data will be encrypted.
Use the PCB-FHDD UTS PC-3000 adapter just remove 4 capacitors .
No need to solder 4 data wires, which can increase data security
The users can image the patient HDD or extract the lost data directly by SATA interface




1:本产品不需要在PCB上焊接电线,数据恢复和电子取证变得更加安全

This product does not require soldering wires on the PCB, data recovery and electronic forensics become more secure!


PCB-FHDD UTS 优点:不用焊接电路,可以读取数据,可以保证数据安全,不对原电路板破坏,新款的硬盘 电路板测试点尺寸小,不容易焊接,电路比较脆弱,焊接线路对于新的年轻工程师是困难的并有非常高的风险容易损坏PCB!!!

(实际案例中有遇到电路板焊盘被 某工程师焊脱落的情况,用这个板就很安全,不需要焊接,避免了新手焊工和经验差,导致数据无法恢复的隐患)


This PCB-FHDD UTS has its advantages:

No need to solder wires for Original PCB of patient HDD , But, Read the data easy, This method will not damage the original PCB and just remove 4 capacitors that will improve data security, The new test point PCB of HDD is small in size, not easy to Welding wires, The USB PCB of patient HDD to Soldering wires with new young engineers is difficult and has a very high risk of easily damaging the PCB!!!




注意:只有在读写ROM时才可以插入编程器数据线。插入ROM线前要提前关闭硬盘电源。

2:FHDD UTS 本身不是解密板,用PC-3000程序 7.1.10 版本可以解锁ROM,再通过编程器回写ROM. 可以解锁原始电路板SED锁定。将原始电路板变成解锁板,正常读写固件并提取数据。
FHDD UTS itself is not a decryption board, use PC-3000 program version 7.1.10 to unlock the ROM, and write back the ROM with the programmer. It can unlock the SED lock of the original circuit board.The original circuit board become an unlock board, read and write the firmware normally, and extract the data normal!!!.





现在开始订购;欢迎咨询!

陈经理

电话:13331038895 (微信同号)QQ:2440248146


Order product contact:

SKYEP1: JDC-003                    Email:13331038895@189.cn

SKYPE2: Junda                        Email:2244873427@qq.com

SKYPE3: JUNDA TS0                 Email:3373560782@qq.com

SKYPE4: china2005zbz@live.cn  Email:pc3000udma@vip.qq.com





任何人不能复制盗版抄袭PC-3000任何产品,如发现将追究其法律责任并关闭其名下所有PC-3000产品软件激活服务。
详情参见:点这里查看PC-3000安装协议

PC-3000 商标持有人(点这里查看商标):北京军达成出品 抄袭盗版必究

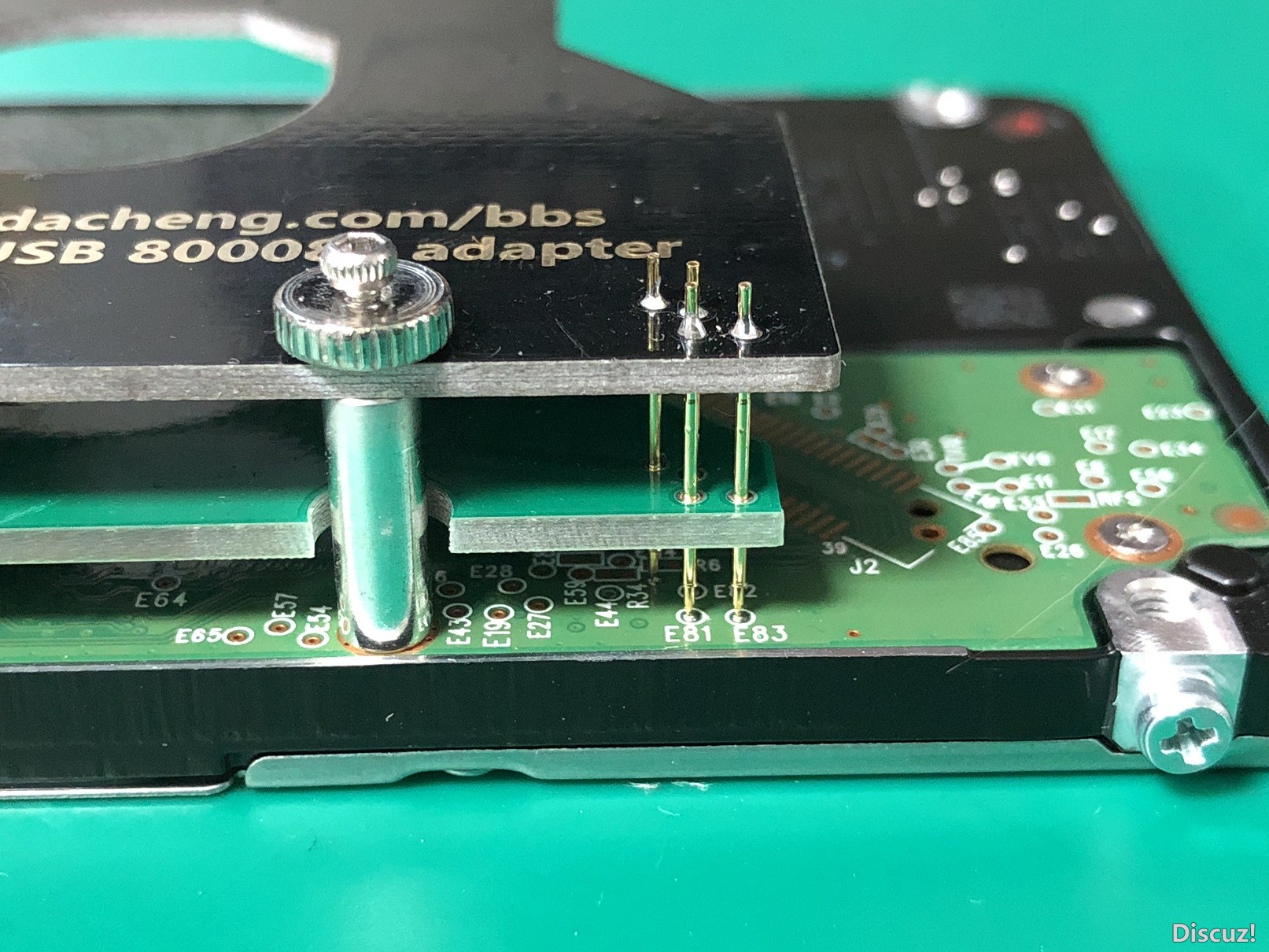

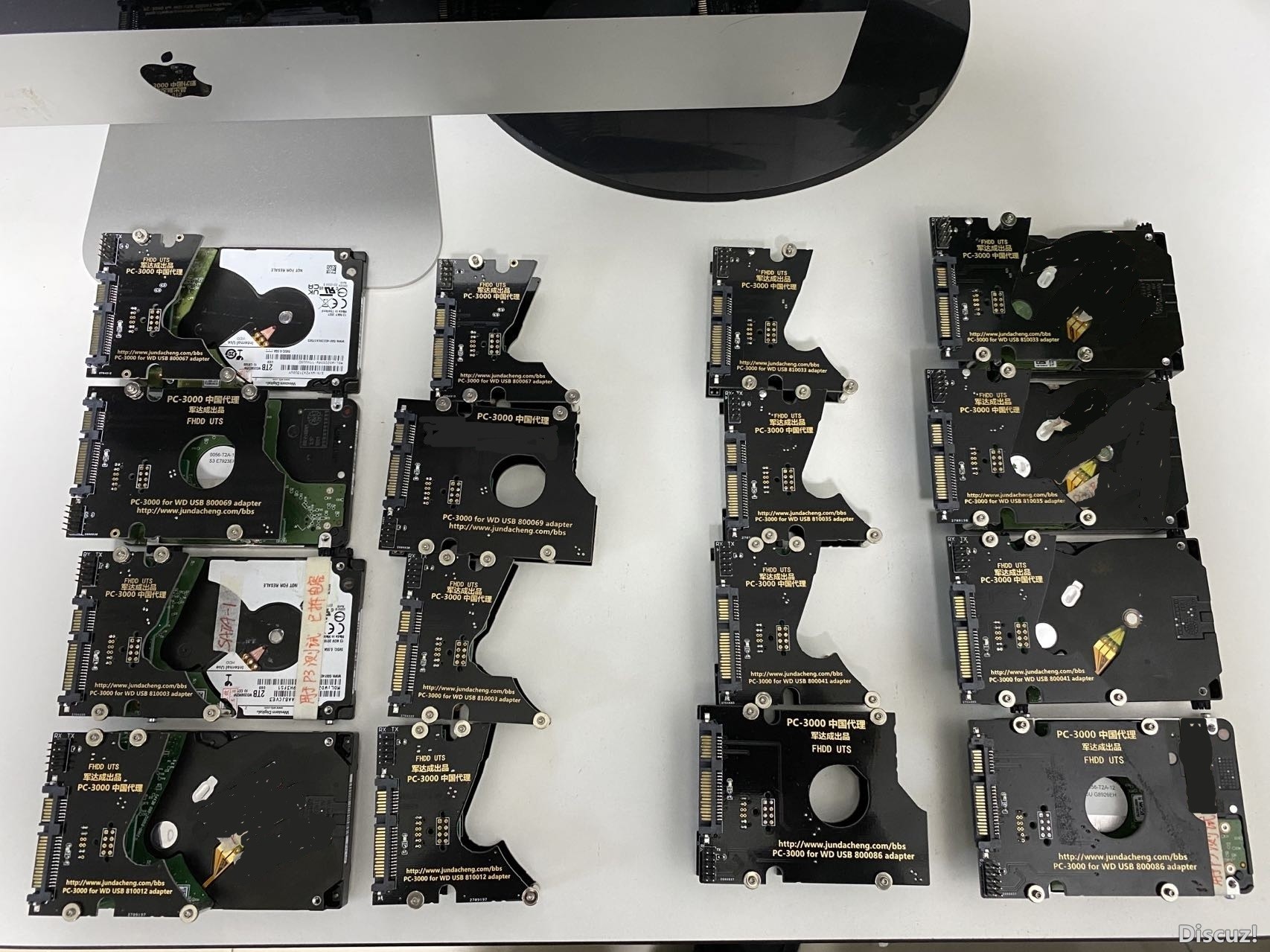

FHDD USB.jpg

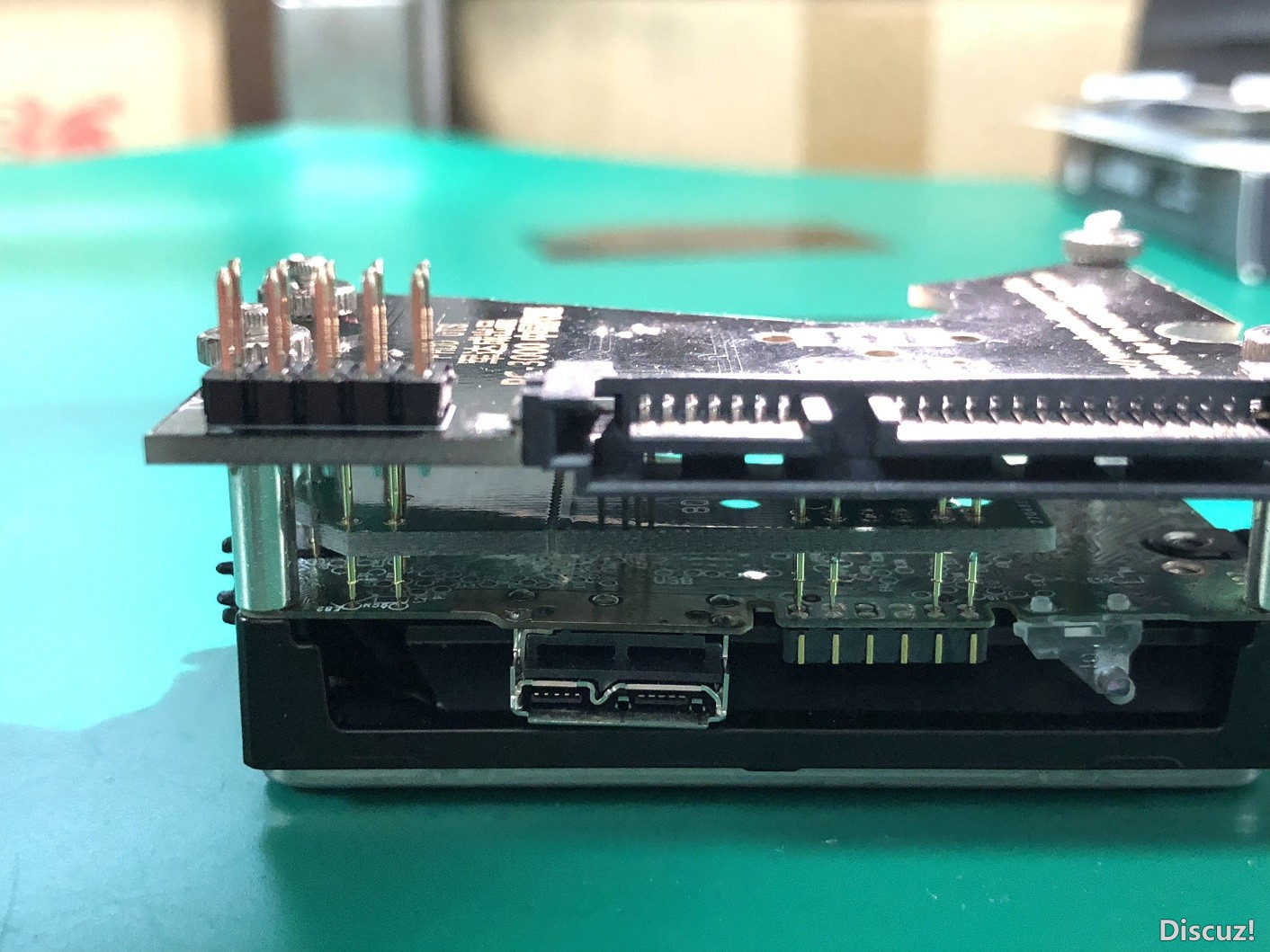

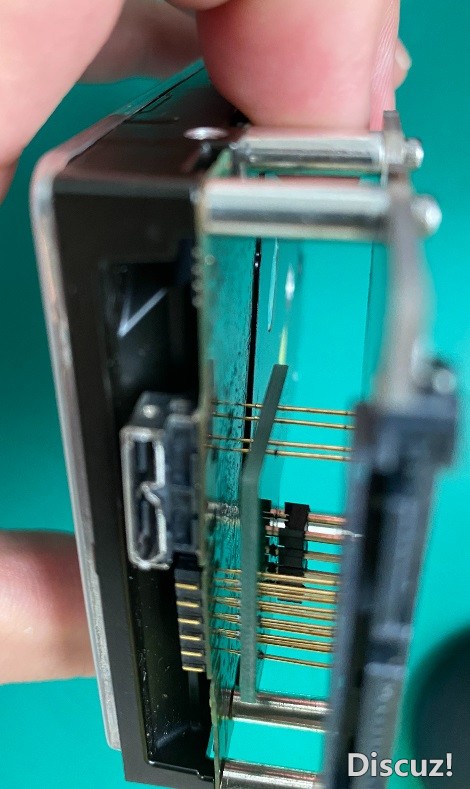

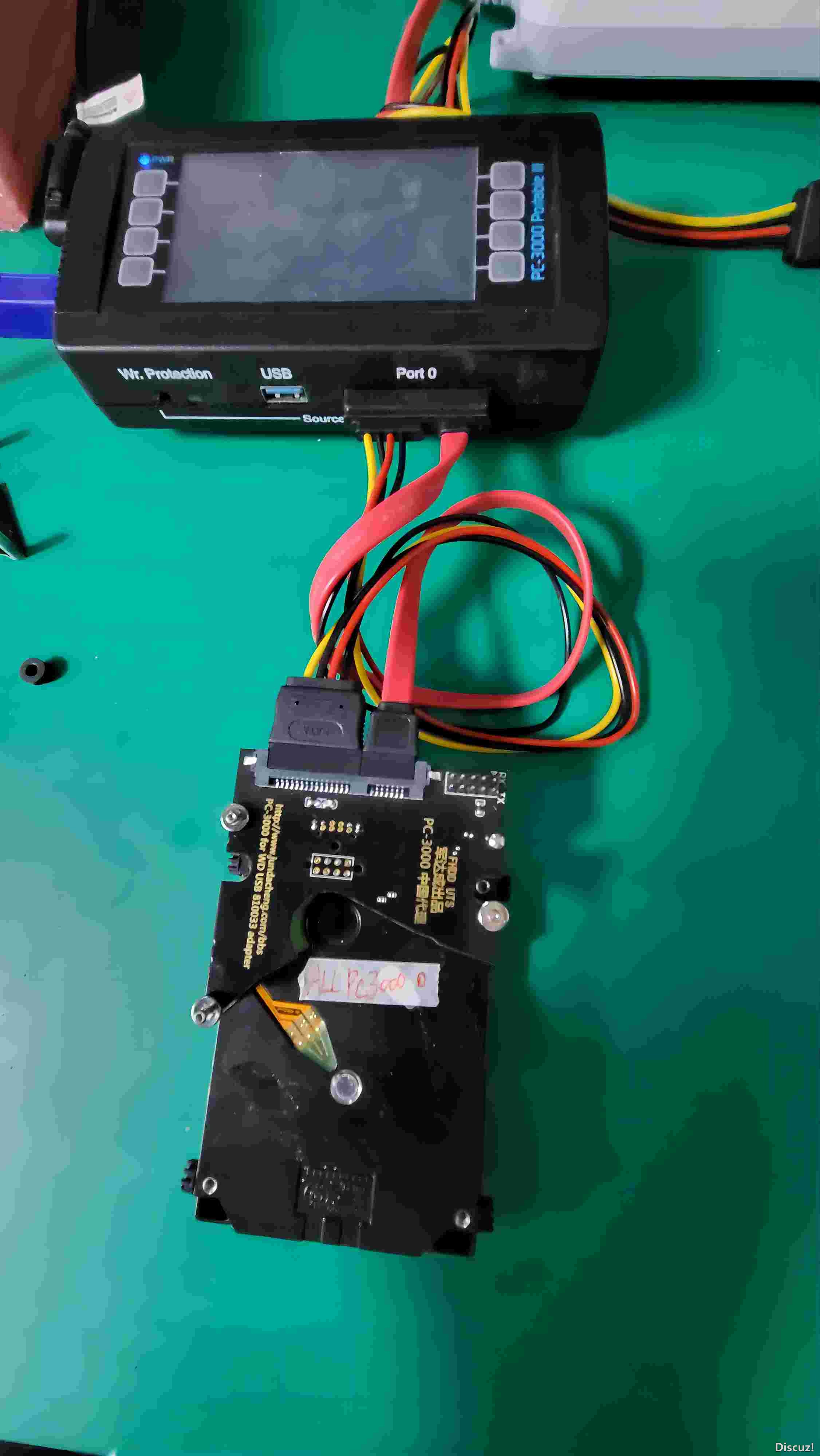

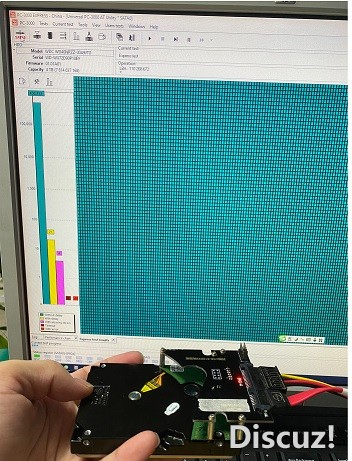

USB转SATA探针板FHDD UTS 不需要飞线,直接认盘读取扇区

Use the PCB-FHDD UTS PC-3000 adapter just remove 4 capacitors .
No need to solder wires for Original PCB of patient HDD , But, Read the data easy,

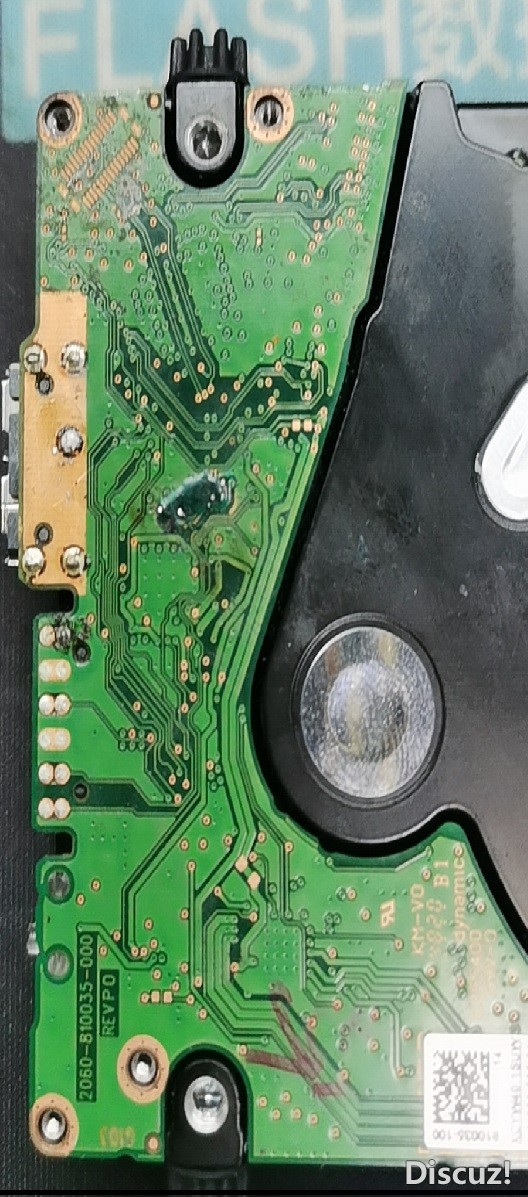

PC-3000 for WD USB 810035


FHDD USB01.jpg












FHDD USB05.jpg

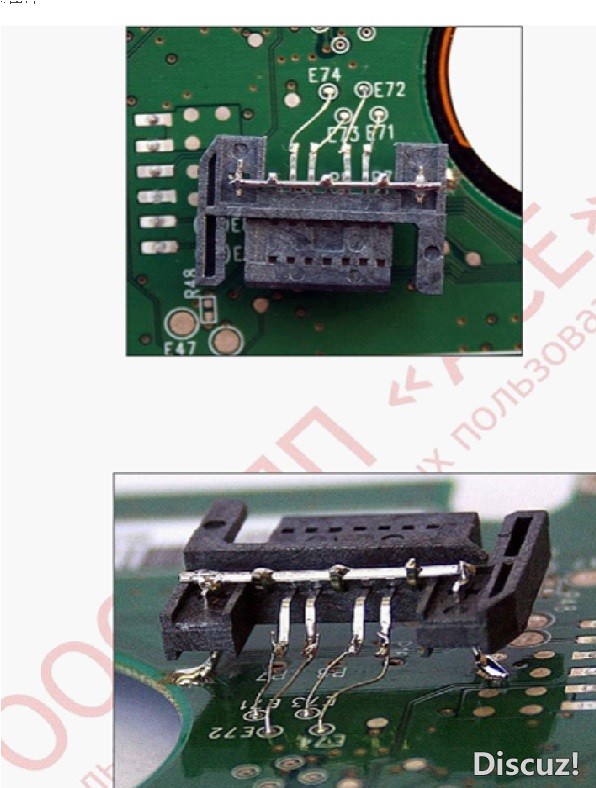

早期的硬盘 电路板测试点尺寸大, 容易焊接
The  old WD USB HDD of PCB that test point of PCB is large in size and easy to solder

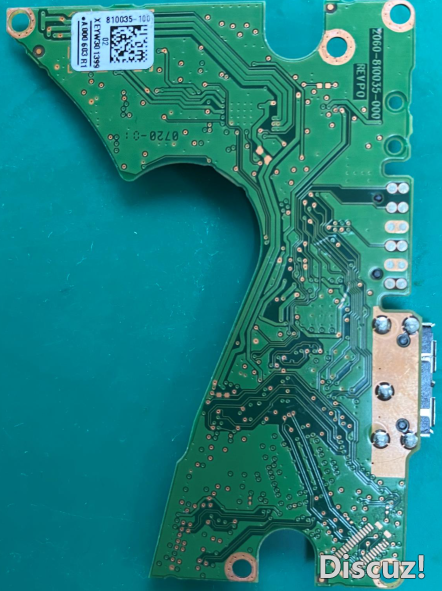

USB 800035 PCB1.png

我们可以看到上面照片......对于一些WD USB HDD,它是USB接口。 你必须把线焊到一个SATA接口上才能提取数据,但有些WD主控芯片是加密的。 更换 SATA PCB 后,数据被加密,无法解密。 但是只可以读写固件,,为了解决数据加密问题,,如果把USB转接成SATA接口必须使用故障硬盘的原装PCB焊线!!!!

We can see photo ....For some WD USB HDD, it is  USB interface. You have to weld the wire to a SATA interface In order to extract data, But some WD main control chips are encrypted. After replacing the PCB SATA, the data is encrypted and cannot be decrypted. read and write FW only,,,You must weld the wire use the original PCB of patient HDD for the USB Converted to SATA interface!!!!


FHDD USB04.jpg




新款的硬盘 电路板测试点尺寸小,不容易焊接,电路比较脆弱。

焊接线路对于新的年轻工程师是困难的并有非常高的风险容易损坏PCB!!!

The new test point PCB of HDD is small in size, not easy to Welding wires,

The USB PCB of patient HDD to Soldering wires with new young engineers is difficult and has a very high risk of easily damaging the PCB!!!


FHDD USB02.jpg

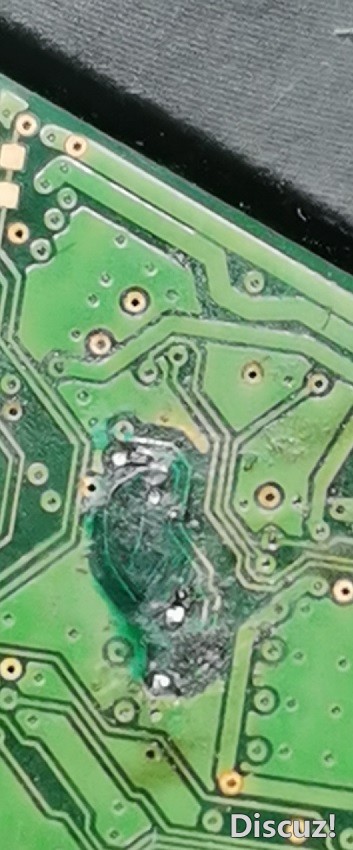

此盘就是新款硬盘 电路板测试点 损坏后的情况。可以看到PCB损坏,PCB焊盘人为损坏
This PCB of HDD is the new WD USB HDD PCB test point, which is damaged after soldering.

You can see that the PCB is damaged and the PCB pads are artificially damaged

为了WD USB HDD数据安全,我们推荐使用 FDD UTS PC-3000系列适配器
For WD USB HDD data security, we recommend using FDD UTS PC-3000 series adapter
